ALIENTEK DL16 Logic Analyzer Features and Specifications

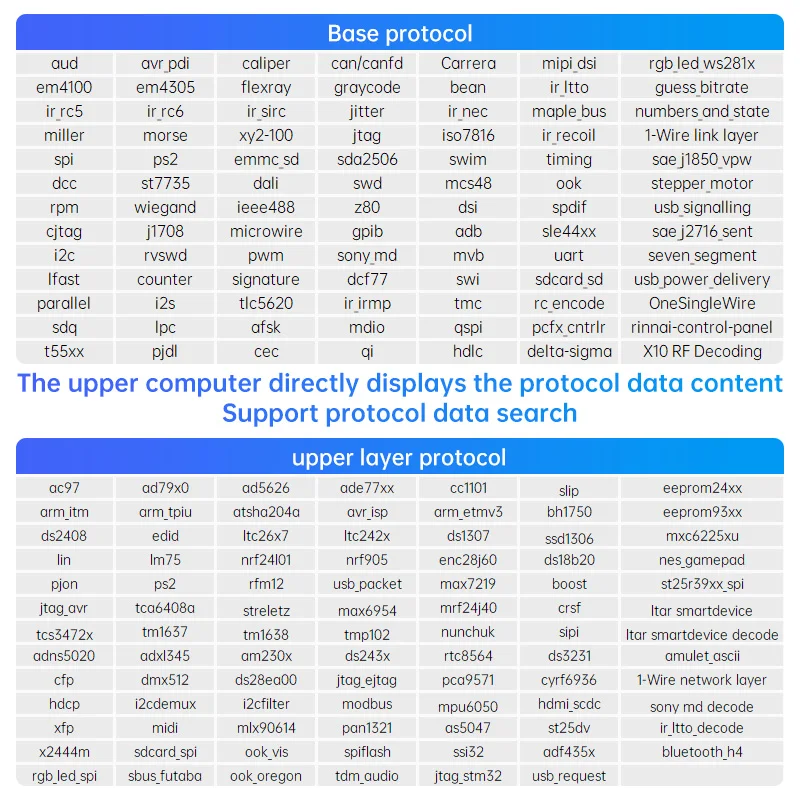

The ALIENTEK DL16 Logic Analyzer samples at up to 250MHz max sample rate, letting you resolve pulse widths and setup-hold violations that slower analyzers miss entirely. All 16 independent channels operate simultaneously, so you can monitor a full parallel bus or multiple serial interfaces in a single capture without sacrificing resolution. USB plug-and-play operation means you connect the device to any Windows or Linux machine, install the companion software, and start decoding within minutes. The included ARM FPGA protocol decoding software supports SPI, I2C, UART, CAN, and more, automatically annotating waveforms with human-readable packet data so debugging sessions take hours instead of days. A compact, lightweight enclosure makes the DL16 easy to carry to a bench, a lab rack, or a field service call where reliable signal capture is essential for any electronics engineer or maker.
A***n –
– the logic analyzer arrived on time and in good condition.
– i connected it to the atk logic software, and it worked as advertised.
– sample rates were limited to 200msps total for all channels when in streaming mode. So, like 1 channel at 200mmsps or 4 channels at 50msps, etc.
– sample rates were up to 500mhz
– in buffer mode it lets you sample up to 8 channels at 1gsps, or up to 16 channels at up to 500msps.
– the carrying case was nice, and it included a nice set of probe tips.
c***r –
It is much easier to use than the cheap logic analyzer I was using before.
The cable is made of a material that prevents tangling, and the fact that only the GND has a different color at the end is easy to understand and very good.
It’s better not to have high expectations for the case.
The application is also sufficient as software for such measuring instruments, and I am satisfied with it.
AliExpress Shopper –
I am very satisfied with the analyzer, as well as all Alientek products, I recommend them for purchase.
AliExpress Shopper –
As described. Fast shipping
AliExpress Shopper –
Very nice case (maybe just a bit too big for what’s inside? ), so, smaller logic analyzer than i thought, but it’s actually much better that way!
Works with windows (x86_64), will test with linux (x86, x86_64, armv7/32, aarch64) later on, but it should work too. The software interface is really nice, i haven’t tested everything yet.
Still expensive for what it is, but much cheaper than equivalent 16 channels logic analyzers out there, and much better than the cheap 8 channels ones on this site (although i would recommend to buy that first, then move on to more expensive later, despite this product makes things much easier and smoother to analyze stuff! ).
So far, i recommend this product.
Hope my review is useful to someone…
Will post additional feedback later if i notice something wrong/bad with it…
